We’re currently working on redesigning Insights and the metrics that we’re going to provide. Our plan is to first keep extending Prometheus endpoint with valuable metrics and offer at some point connectors to the most popular metrics tools

We’d love if you want to provide feedback on this. Please reach out to support to start a conversation. Thanks!

Prometheus endpoint

GrapheneDB provides a Prometheus endpoint if you navigate to the Insights tab. This endpoint can be used as a target for scrapping database instance metrics.

The Prometheus configuration file should look like this:

global:
  scrape_interval:     15s  # By default, scrape targets every 15 seconds.
  evaluation_interval: 15s

scrape_configs:
  - job_name: 'graphenedb-prometheus'
    scheme: 'https'
    static_configs:
    - targets: ['db-jnbxly9x0fbarnn5x9cz.graphenedb.com:24780']

Please, note that we have removed the /metrics part from the given URL. Prometheus expects metrics to be available on targets on a path of /metrics.

After Prometheus is started, you should be able to check that the targets state at http://localhost:9090/targets

Cluster Prometheus configuration

For Cluster plans, each node will expose a Prometheus endpoint. You can configure Prometheus for scrapping metrics on each node:

global:
  scrape_interval:     15s  # By default, scrape targets every 15 seconds.
  evaluation_interval: 15s

scrape_configs:
  - job_name: 'graphenedb-prometheus'
    scheme: 'https'
    static_configs:
    - targets: ['db-1-4on3rt6tpwbnj6zknmg4.graphenedb.com:24780’, 'db-2-4on3rt6tpwbnj6zknmg4.graphenedb.com:24780', 'db-3-4on3rt6tpwbnj6zknmg4.graphenedb.com:24780']

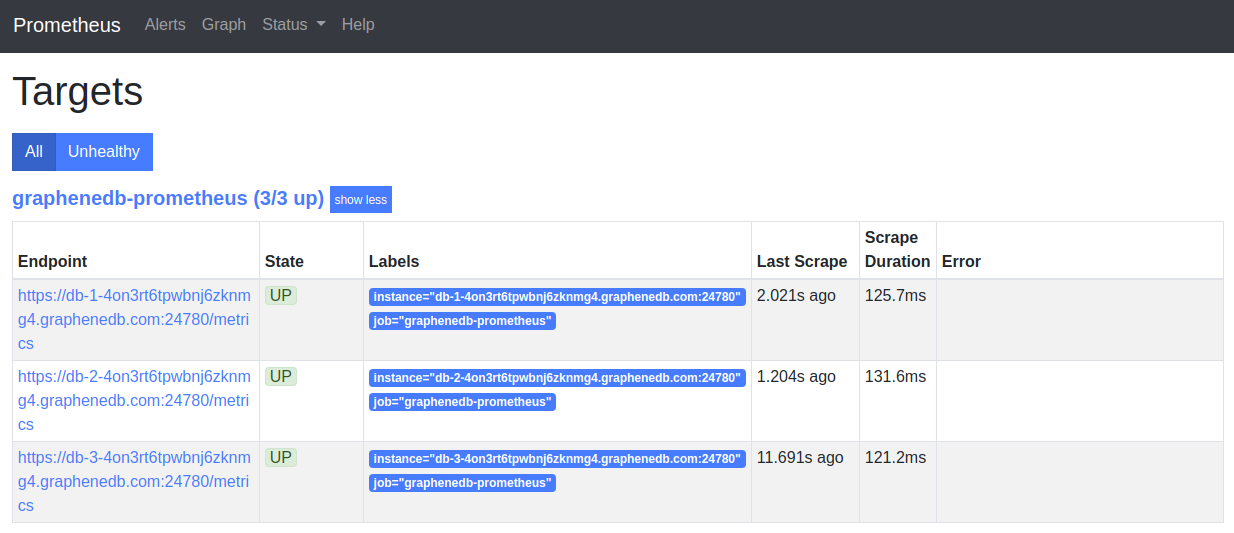

On the Prometheus targets states page, you should see:

Metrics reference

Metric name

Description

jvm_gc_collection_seconds_count

Time spent in a given JVM garbage collector in seconds

jvm_memory_pool_bytes_used

Used bytes of a given JVM memory pool

jvm_memory_bytes_used

Used bytes of a given JVM memory area

jvm_memory_bytes_max

Max (bytes) of a given JVM memory area

jvm_memory_bytes_init

Initial bytes of a given JVM memory area

jvm_classes_loaded_total

The total number of classes that have been loaded since the JVM has started execution

jvm_threads_current

Current thread count of a JVM

process_open_fds

Number of open file descriptors

jvm_classes_loaded

The number of classes that are currently loaded in the JVM

station_cpu_usage_seconds_total

Total amount of CPU time

station_cpu_load_average_delta

CPU load average

station_memory_failures_total

Cumulative count of memory allocation failures

station_memory_usage_bytes

Current memory usage in bytes

station_cache_bytes

Amount of bytes of cache

station_network_receive_bytes_total

Cumulative count of bytes received

station_scrape_error

1 if there was an error while getting metrics, 0 otherwise

station_uptime_seconds

Station uptime

station_last_seen

Last time the station was seen by the exporter

station_network_transmit_bytes_total

Cumulative count of bytes transmitted

station_spec_cpu_shares

CPU share of the station

station_spec_memory_limit_bytes

Memory limit for the station

station_spec_memory_soft_limit_bytes

Memory soft limit for the station

station_spec_cpu_period_us

CPU period of the station

station_spec_cpu_quota_us

CPU quota of the station

On Cluster databases, ONgDB and Neo4j Enterprise metrics will be also available. Please, check Neo4j Operation Manual to get a list of the available metrics.

Grafana dashboard examples

Grafana is a popular and powerful tool to visualize metrics. Please, visit Grafana documentation for more information.

Please, find in the following links some Grafana dashboard exported by our team as a starting point of metrics visualization:

  • Single database metrics
  • Cluster database nodes metrics

Halin tool

Halin is a cluster-enabled monitoring tool for Neo4j, that provides insights into live metrics, queries, configuration and more.

You just need to visit https://halin.agraphenedb.com and enter the parameters shown on the Insights tab.

Please read more on Halin project here.
