Connecting to your database

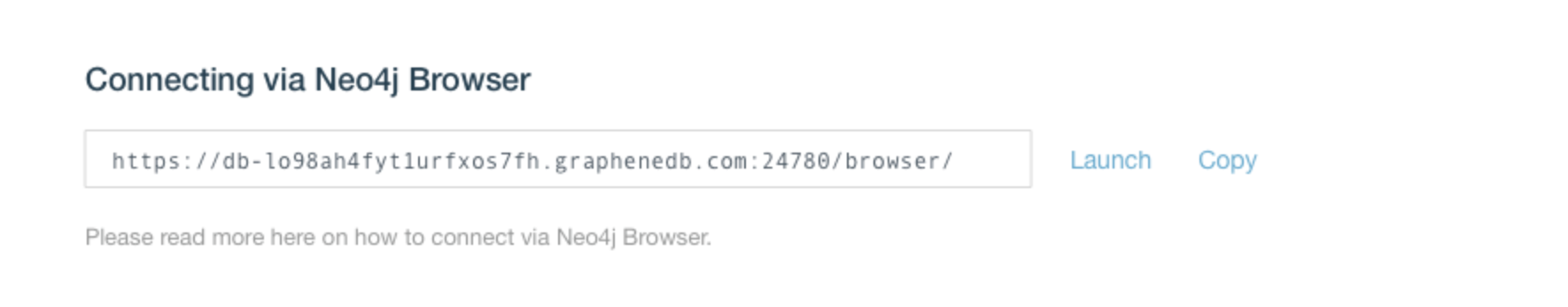

GrapheneDB supports the two endpoints available in Neo4j for connecting remotely to a database: * Using [Bolt binary protocol](/docs/connecting-to-your-database#section-connect-using-bolt-binary-protocol) * Using [HTTP REST API](http://docs.graphenedb.com/docs/connecting-to-your-database#section-connect-using-http-rest-api) If you’re starting with Neo4j we recommend you to use the Bolt protocol, as it it’s being favoured by Neo Technology team and supported by all new official drivers. [block:callout] { "type": "warning", "body": "Please note that Bolt is only available for databases running 3.0.0 or higher. The Neo4j version is displayed in the Overview tab of a database.", "title": "Keep in mind:" } [/block] ## Retrieving your database connection settings All the connection details can be found in the Connection tab within the database management UI: [block:image] { "images": [ { "image": [ "https://files.readme.io/8619c3e-connection.png", "connection.png", 939, 598, "#f4f4f4" ] } ] } [/block] Connect using Bolt with the Bolt URL and the username and password of one the users in the Database users section. Read more on [using Bolt](/docs/connecting-to-your-database#section-connect-using-bolt-binary-protocol). Connect via HTTP REST using the HTTP REST URL and the username and password of one of the users in the Database users section. Read more on [using HTTP REST API](http://docs.graphenedb.com/docs/connecting-to-your-database#section-connect-using-http-rest-api). [block:callout] { "type": "warning", "title": "Important", "body": "If you’ve just provisioned your database you will need to create a new database user to connect to your database. Please take a look at the [Database users article](/docs/graphenedb-database-users) to read more on how to manage users for your database." } [/block] ## Developing your application If you are developing an application it’s recommended to rely on a driver that handles the communication with the database. There is a wide range of drivers available for Bolt and HTTP REST. Some are officially provided by Neo Technology, while others are developed and maintained by the community. Please take a look at our [Language center](/docs/language-center-overview) to explore options to connect to GrapheneDB using a driver. ## Connect using Bolt binary protocol Bolt is a binary protocol for Neo4j, which is designed for high-performance throughputs, using a compact binary encoding over persistent TCP connections. You can find more information on Bolt in the [official release notes](http://neo4j.com/blog/neo4j-3-0-milestone-1-release/). All the necessary parameters to connect to your database via Bolt can be found in the Connection tab of your database management interface: [block:image] { "images": [ { "image": [ "https://files.readme.io/89410ab-bolt_url.png", "bolt_url.png", 923, 344, "#f7f6f6" ] } ] } [/block] Use the BOLT URL from the Connection strings section and a valid username and password from the Database users section to connect. Please read more on database users [here](/docs/graphenedb-database-users). [block:callout] { "type": "info", "body": "Please note that Bolt is only available for databases running 3.0.0 or higher. The Neo4j version is displayed in the Overview tab of a database.", "title": "Information" } [/block] ## Connect using HTTP REST API To connect to the HTTP REST API directly or using a driver, use the HTTP URL and a database user. You can find the URL and manage the database users in the Connection tab of the database management interface. [block:image] { "images": [ { "image": [ "https://files.readme.io/daf4dee-http_url.png", "http_url.png", 975, 365, "#f7f6f6" ] } ] } [/block] More on database users can be found [here](/docs/graphenedb-database-users). When connecting directly instead of using a driver, the transactional HTTP endpoint should be used. It allows to run multiple queries within the scope of a transaction and it supersedes the deprecated HTTP Cypher endpoint. More information on the transactional HTTP endpoint can be found [here](http://neo4j.com/docs/developer-manual/current/http-api/).
